12v/24v Car Truck LCD Digital Oil Pressure Gauge/Volt Voltmeter /Water Temperature Gauge/Fuel Gauge /Tachometer 5 Function in 1

12v/24v Car Truck LCD Digital Oil Pressure Gauge/Volt Voltmeter /Water Temperature Gauge/Fuel Gauge /Tachometer 5 Function in 1
  • Продавецwww.icfpcp.info
  • Список ценUS $42.20piece
  • Продажная ценаUS $42.20piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,4 (517)

Oписание продукта


100% Brand new and high quality,never been used.
Universal fit for all motorcycles with DC 12V, adjustable for 8-22 inch wheel.
ALL-IN-ONE Function: Speedometer, Odometer, Tachometer, Fuel Level Display, Left and Right Indicator, N Gear,  Water Temperature Indicator.
Fits for all style motorcycle ,1 cylinder,2 cylinder and 4 cylinder( 4 stroke motorcycle disc-brake front tire ).
Special Features:speedometer, Odometer, Tachometer, gear position, rpm, icons, fuel, clock etc.

Specifications:
Color:black
Material:plastic
Working voltage:DC 12V
Applicable models: for Kawasaki Z1000
Feauters:
1. Speed (maximum 199, optional metric)
2. Total mileage (maximum display value 999999)
3. Small range (maximum display value 999.9, value can be cleared)
4. Maximum engine speed display 15000r/min
5. Oil level (five-cell LCD indication, low oil level indicator flashing alarm)
6. Left and right turn signals (green)
7. Neutral (Green)
8. LCD display 1-5 files
9. High beam (blue)
10. Backlit white, steady light

Adjusting:

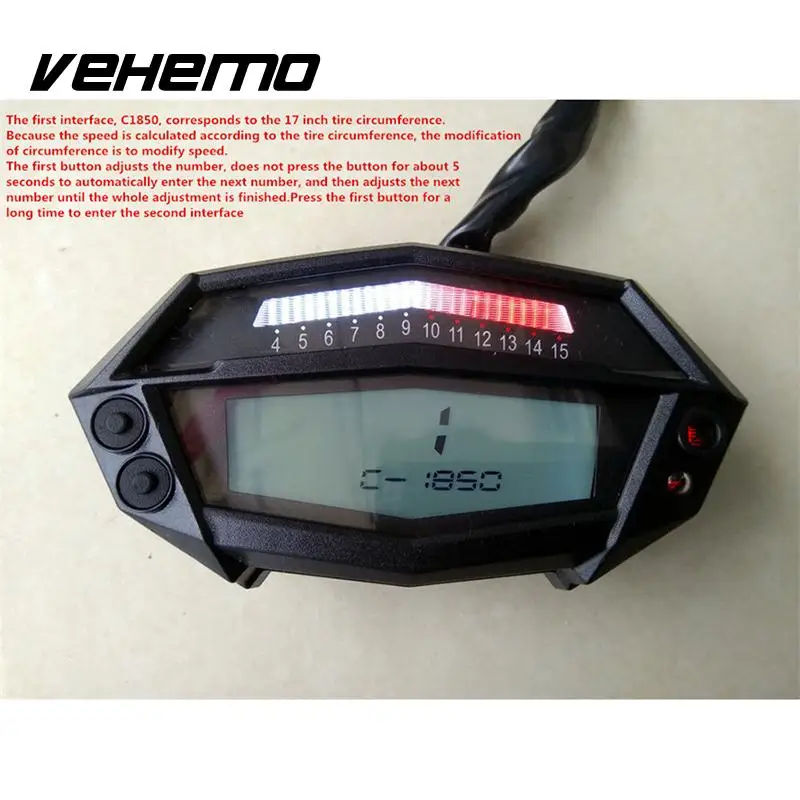

1.The first interface, C1850, corresponds to the 17 inch tire circumference.
Because the speed is calculated according to the tire circumference, the modification of circumference is to modify speed.
The first button adjusts the number, does not press the button for about 5 seconds to automatically enter the next number, and then adjusts the next number until the whole adjustment is finished.
Press the first button for a long time to enter the second interface.
2.The second interface is to modify the number of magnets installed, 1-12 can be modified, 2 magnets are installed by default 2.
Long Press First button to enters next interface.
3.The third interface cylinder number, 2-4 changes, 2 is single cylinder 4 is double cylinder,default 2.
Long press The First button to enter next interface.

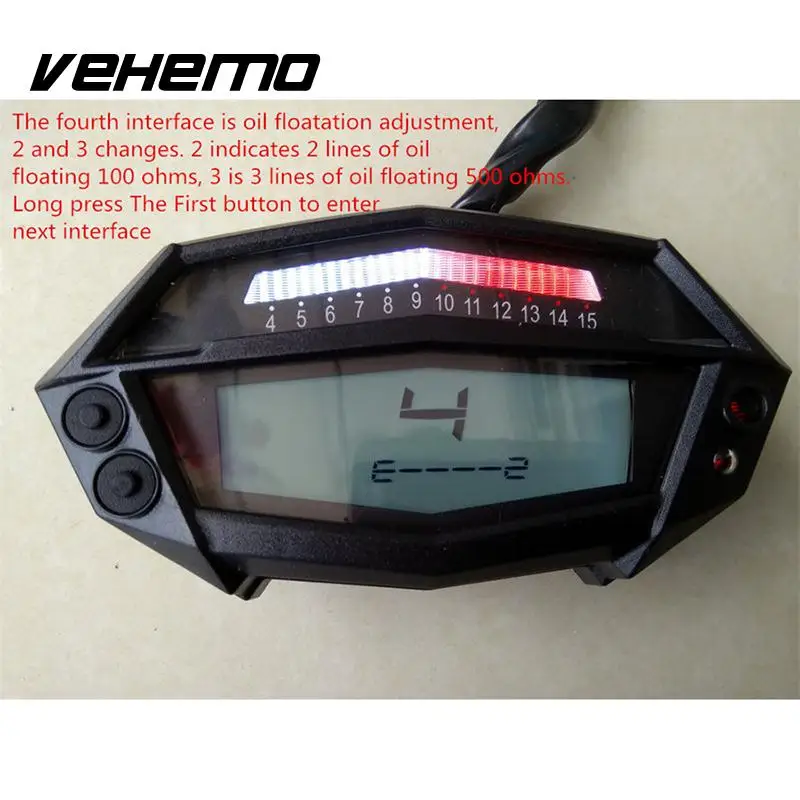

4.The fourth interface is oil floatation adjustment, 2 and 3 changes. 2 indicates 2 lines of oil floating 100 ohms, 3 is 3 lines of oil floating 500 ohms.
Long press The First button to enter next interface
5.The last interface is to clear the total mileage and long press to exit.

Note :
1.Even installation manual included , Professional Installation Is Highly Recommended!
2.We provide clear pictures ,measurement where possible.Please check as much as possible to make sure the item the one that you need.
3.The actual item maybe has slight color distinct with listing image due to different computer screens ,thanks for your understanding.
4.The size of item is manual measurement,please allow 0.5-1inch difference.(1inch=2.54cm)

Package includes:
1 X Speedometer

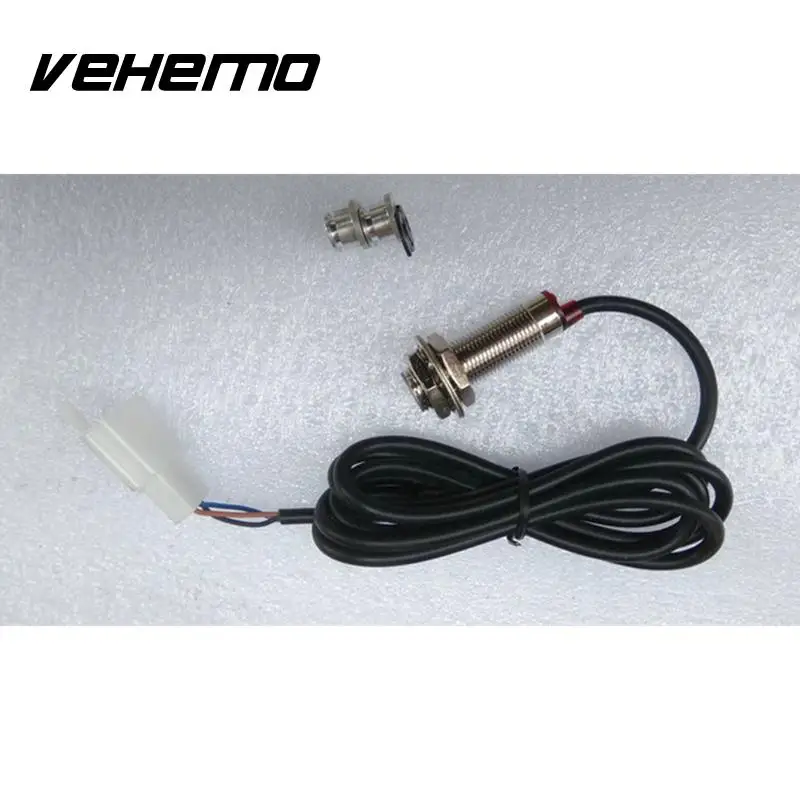

1 X Speed Sensor
